FEATURES/SPECIFICATION

FRAME

2mm gauge high quality anodized aluminium

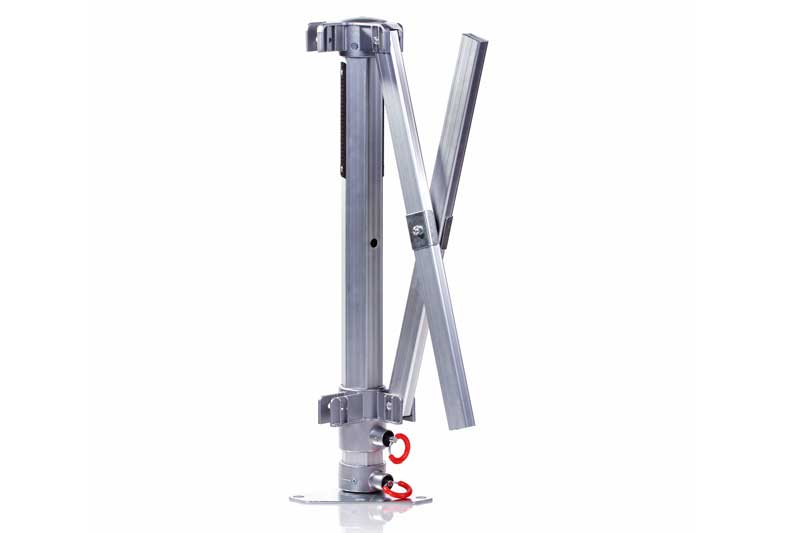

60mm hexagonal alloy legs

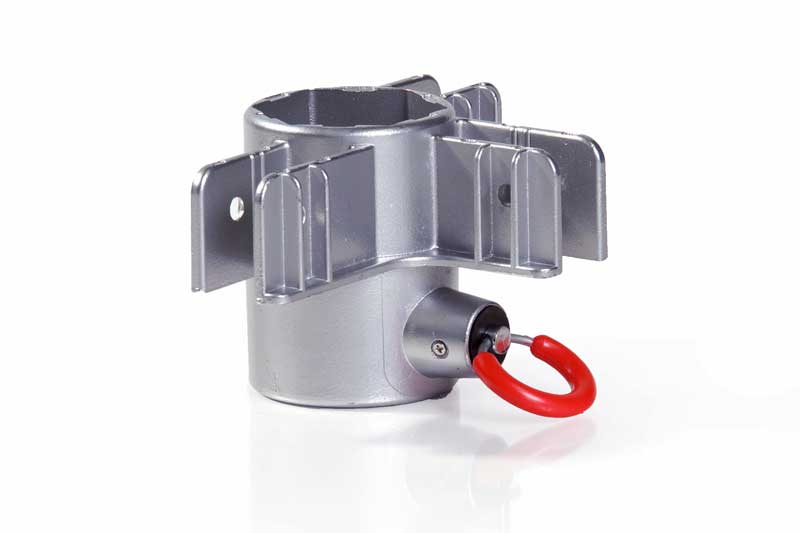

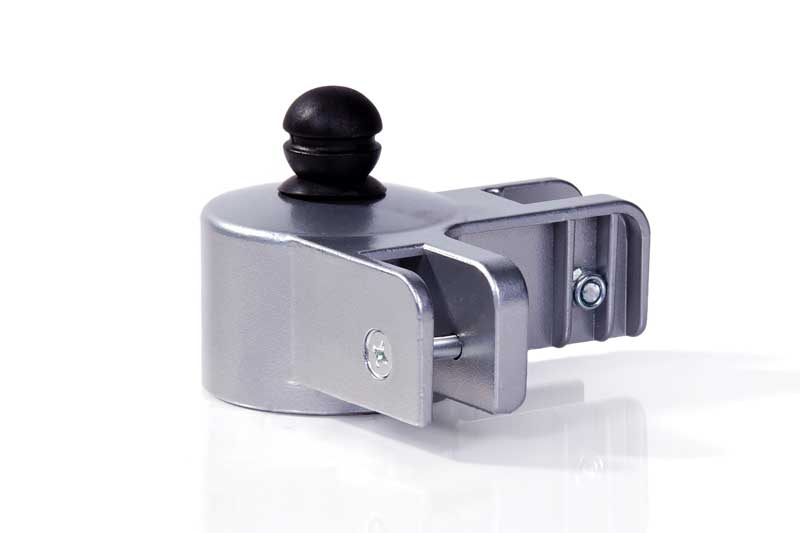

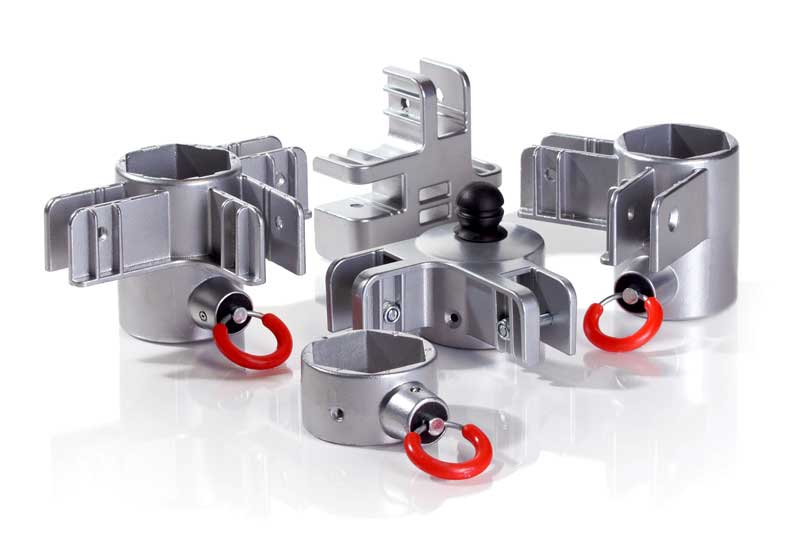

Cast alloy joints

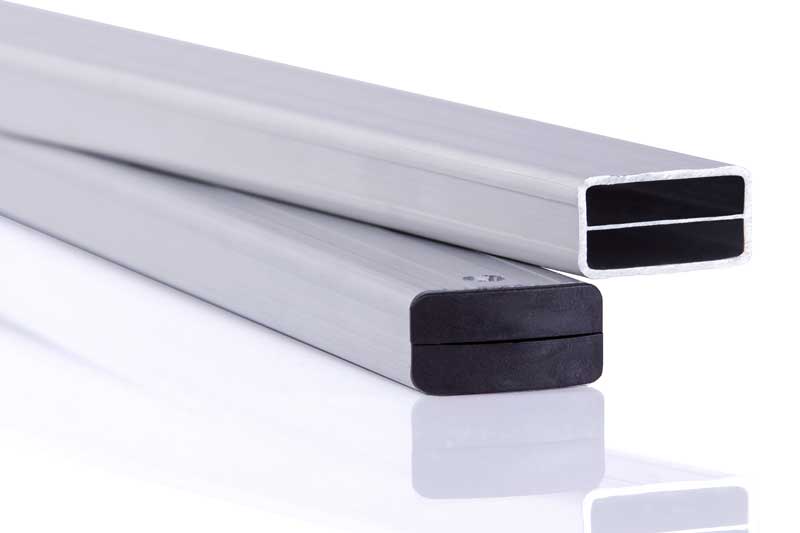

Reinforced cross bars with unique internal ribs

Nut and bolt construction

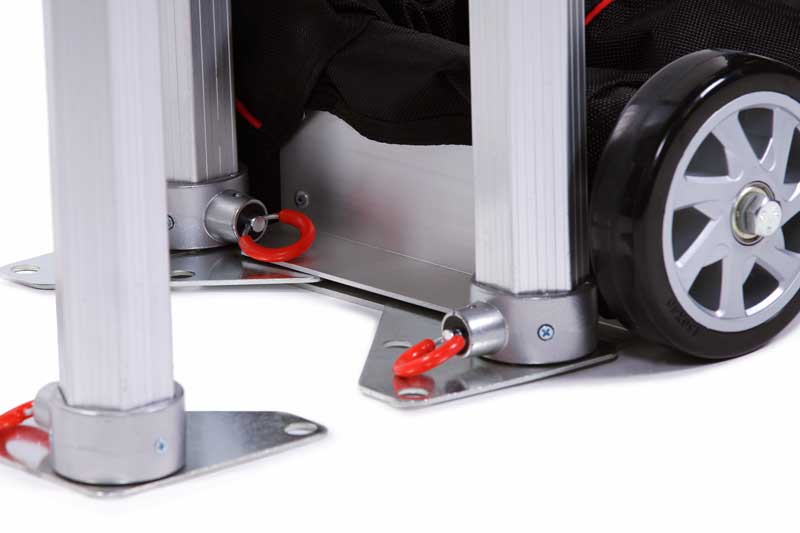

Quick release pull pin fixing

5 position adjustable height settings 190cm-220cm

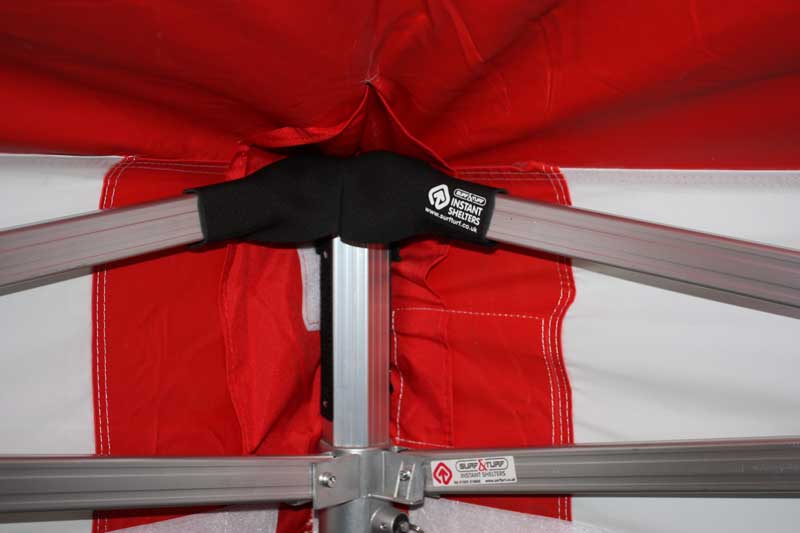

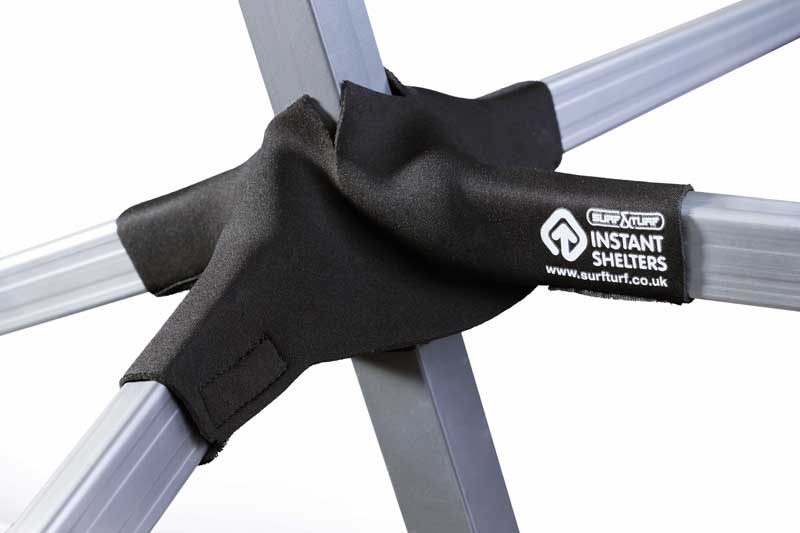

Neoprene Joint Protectors (see included accessories)

CANOPY

Manufactured from 550g per Sq metre high quality, close mesh polyester, PU coated on the outside with a PVC coating on the inside to ensure fully waterproof

Double stitched with reinforcing on stress areas

All seams tape sealed

Flame Retardent BS 7837 (with fire certificate)

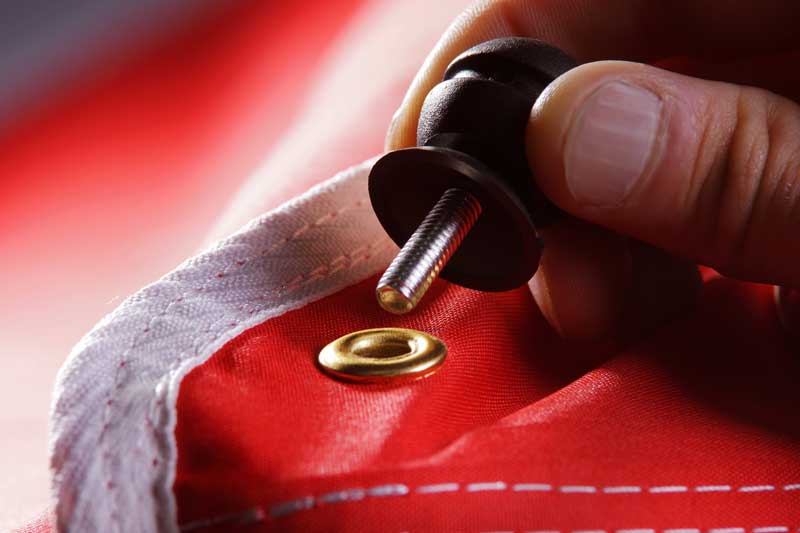

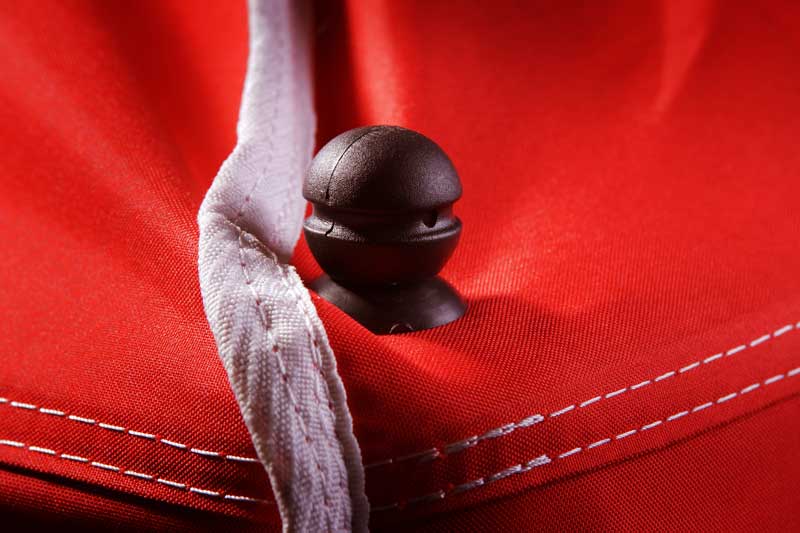

Canopy Securing Bolts, these are a vital feature and ensure the canopy is attached correctly to the frame. Over time they also keep the canopy tight, giving a more professional look.

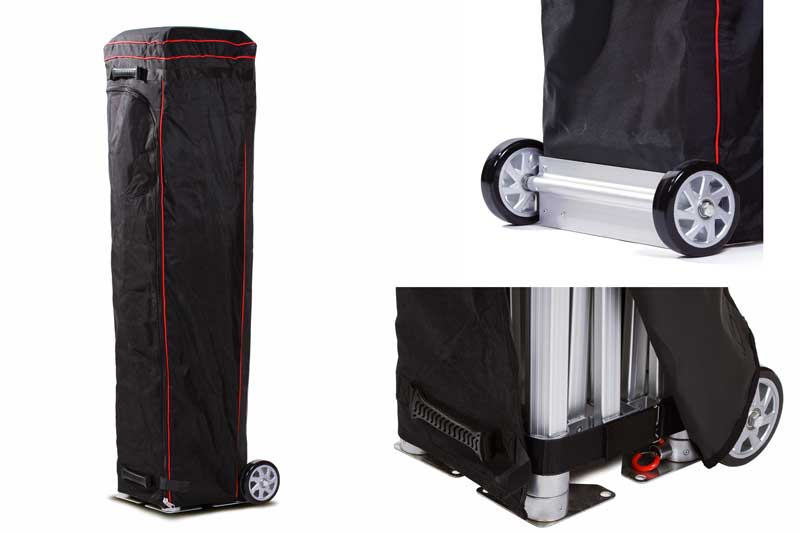

Canopy Protector Bag (see included accessories)

SIDES

Manufactured from the same 550g per Sq metre high quality coated mesh polyester, PU coated on the outside with a PVC coating on the inside to ensure fully waterproof.

35mm PVC sown in mudwall

Sides fix to the canopy with a continuous velcro quick fix system, giving the best seal between the canopy and sides.

Each panel has zipped ends (velcro on PVC Shelters) and can be fixed in any position to suit the conditions of the day, when zipped together it also ensures a water tight and windproof seam on all corners as well as a tight and professional look. The zip continues on to the PVC mudwall, this is a unique and vital feature.

Reinforced zipped areas, our sidewalls have a double material reinforced area around the zip area, this give maximum strength to this stress area. A major benefit to traders and exhibitors who use the shelters with a sidewall panel remove for more exposure.

No.8 Zips, all our sides feature No.8 zips for strength and reliability.

2.5x2.5, 3x3, 3x2, 4x4, 6x4, and 4.5x3m shelter sides have one solid panel, two window panels with a blind on the inside which can be rolled up and down as well as one door panel. 6x3 and 8x4m Shelter has two window panels with blinds, two door panels, and two solid panels, 6m Hex Shelter sides have two solid panels, two window panels with a blind on the inside which can be rolled up and down as well as two door panels.

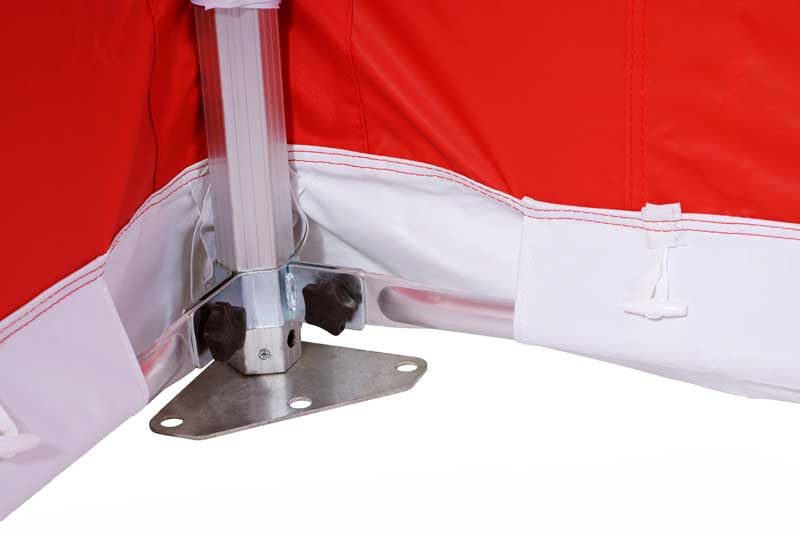

Sidewall Pockets, all Canopro Elite sidewalls have built in ground bars pockets, meaning if ground bars are used the side walls will be secured to the frame, stopping them from blowing in the wind. This is a unique feature and can be vital if the shelter is used on hard-standing when the sides cannot be pegged.

Door Stoppers, all of our door panels are finished with high quality PVC stoppers

Cut Out Corners, For ease of use all of our side walls have cut angled corners, designed to make joining the walls as easy as possible.

Joining Strip, side walls are designed to be a tight fit, this ensures they look neat and professional, if you struggle to join the last side, use the additional joining strip we provide with all sides free of charge

All the sides are interchangeable to suit the conditions of the day.
